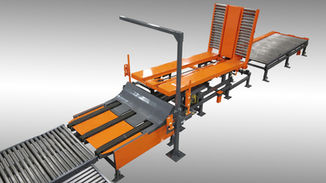

AMS STANDARD PALLET TIPPER

The AMS Automated Pallet Tipper is an easy to use pallet dispenser that increases productivity. It will dispense pallet stacks up to 20 high quickly and efficiently, and is excellent for feeding lead board removers, pallet dismantlers, and sort & repair systems. It is paired perfectly with out Automated Swoop Table to efficiently and safely dispense the pallet onto an Inspection Station without damaging the pallet and maintaining line flow.

Features

  • Description: AMS Standard Pallet Tipper

  • Dimensions: 14’ 2″ Length x 48” Width

  • Height: 10’ 4” in the upright position

  • Weight: 2,400 lbs

  • Discharge: 34” Discharge Elevation

  • Cycle Time: 450 Pallets per Hour

  • Frame: Structural Steel Tubing

  • Feature: Hydraulic Actuation for Indexing

  • Index: Auto Indexing Pusher Platform

  • Controls: Push Button Controls

  • Motor: 5 HP Motor with 10 gallon tank

  • Magazine: 20 Pallets Capacity Standard 48″ x 40″ Stringer Pallets

  • Safety: Activation Alarm Bell

  • Optional: Swoop Inspection Table
