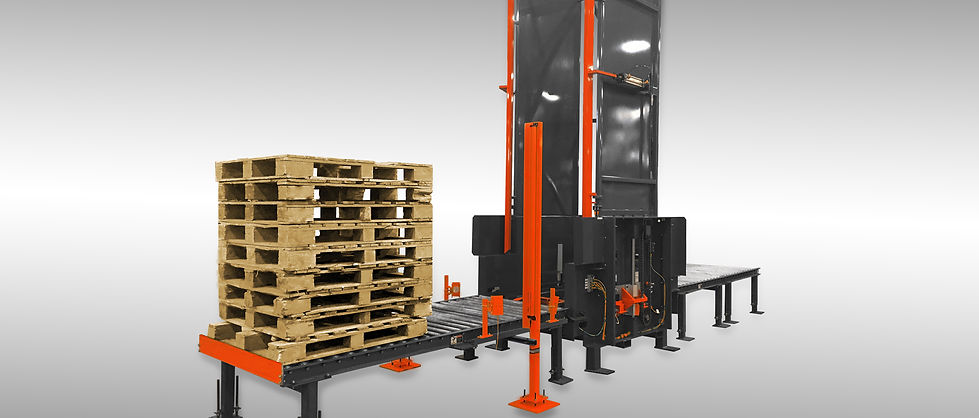

Electric Pallet Stacker

The AMS Electric Pallet Stacker is capable of stacking more than 600 pallets per hour. It receives single pallets from any type of in-feed conveyor and stacks the pallet with its heavy duty electrical hoist system. Once the pallets are fully stacked, the stacker automatically discharges the stack of pallets to the out-feed conveyor. The AMS Electric Pallet Stacker can be integrated into a variety of systems and configurations to meet any pallet stacking needs.

Features

  • Description: High Speed Electric Stacker

  • Dimensions: 69″ Width x 107″ Length

  • Cycle Time: 5 Seconds

  • Capacity: 48″ x 40″ Pallets

  • Conveyor: Dual chain conveyor for infeed/outfeed

  • Controls: PLC controlled

  • Functions: Stacker jog functions & controls mounted in panel

  • Safety Features: (3) Support walls, E-Stop & disconnect with lock out capabilities

  • Electrical: 480/3 Phase
